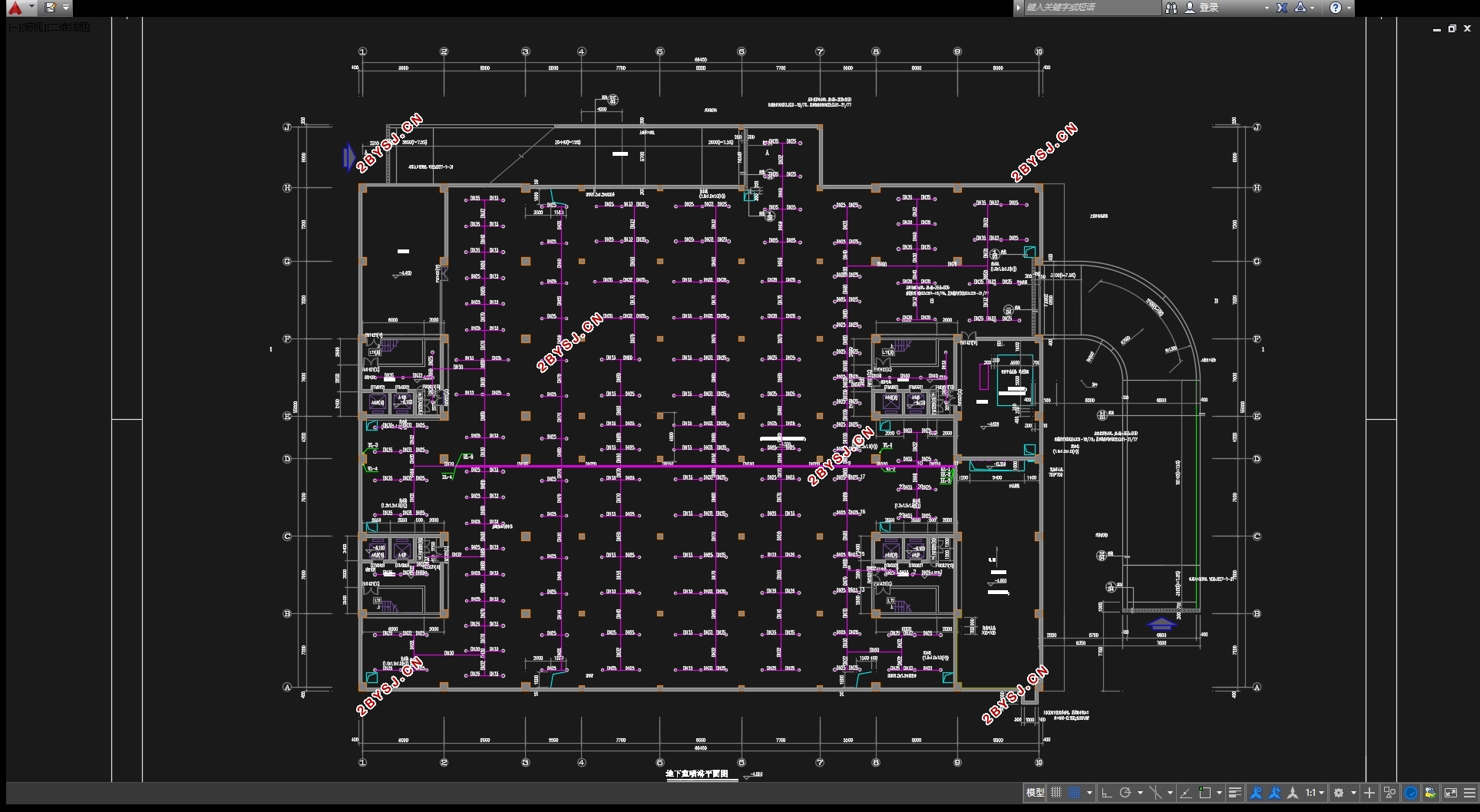

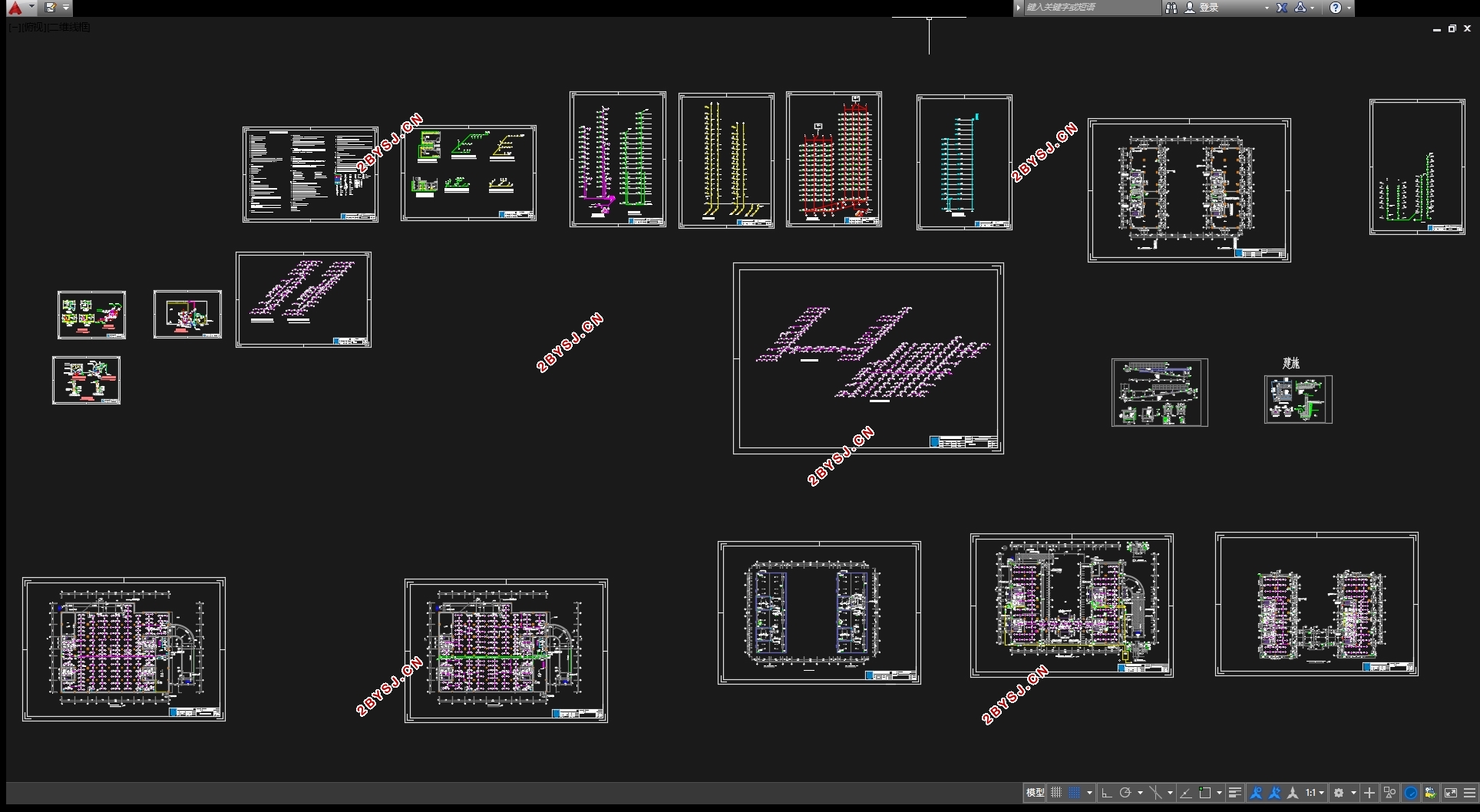

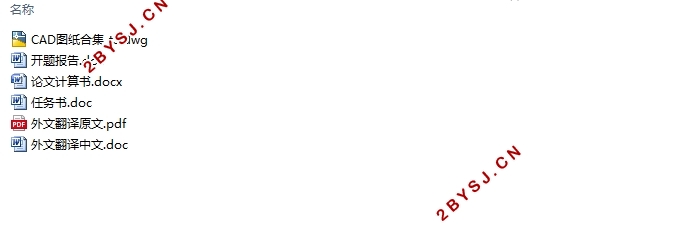

南京某十七层双子楼给水排水工程设计(含CAD图)(任务书,开题报告,外文翻译,计算说明书11000字,CAD图18张)
摘 要
本设计一层至地上六层为市政管网直供,南楼七至十七层,北楼七至十三层为变频泵供水的给水方式。直供部分从市政给水管网接一根DN150的引入管,另两根DN100的引入管接至地下一层生活水池和消防水池。生活水池和消防水池采用砖砌混凝土结构,置于地下室。排水采用生活污、废水合流制。通气管除泵房排水槽经汇集排至地下一层污水井,经潜污泵提升排至检查井再经过化粪池处理后排入市政排水管。屋面雨水排放选择重力式雨水系统,雨水经屋面雨水斗收集后由雨水管排至检查井。
根据规范,该建筑为一类建筑,属中度危险一级。室内消防流量20/s,室外30L/s。充实水柱取12m,水龙带长度取25m,水枪喷嘴流量5.0L/s,消防立管管径为DN150。在顶层设试验消火栓一个,每个室内消火栓箱内均设有远距离启动消防泵的按钮。
该建筑采用湿式自动喷淋灭火系统,报警阀设于地下一层,各层均设水流指示器、末端试水装置和信号阀,其信号均送入消防控制中心进行处理。本工程的自动喷水灭火系统分4个区。屋顶水箱为30立方米为消防水箱,贮存10min自动喷水灭火系统、室内消火栓系统用水量。自动喷水灭火系统和消火栓系统的初期灭火由水箱供水,后期供水由地下室的消防水泵和自喷泵供水。
关键词:给水系统、排水系统、消火栓系统、自动喷水灭火系统、雨水系统
Abstract
This design for the municipal pipe network layer to the six straight, south tower seven to 17 layer, north tower seven to thirteen layer for frequency conversion water supply way of feed water pump. Straight for the part from the municipal water supply pipe network after the introduction nd life and fire the pool. Life and fire the pool adopts brick concrete structure, in thof a 6 \"pipe, the introduction of the other two DN100 tube connected to undergroue basement. Using life sewage drainage, waste water system of confluence. Vent collection in addition to the pump room by the sink to the underground water Wells, the submersible sewage pump up to check well drained and then treated with septic tank back into the municipal drainage pipe. Roof drainage drainage system of the gravity type choice, the rain after roof rainwater hopper to collect from the storm sewer line to check well.
According to the specification, the building to building, a moderate risk level. Indoor fire flow/s, 20 outdoor 30 l/s. Enrich water column 12 m, hose length 25 m, spray nozzle flow 5.0 L/s, fire riser pipe diameter is 6. On the top floor set fire hydrant a test, each indoor fire hydrant box have remote button to start the fire pump.
The building adopts wet automatic spray fire extinguishing system, alarm valve in underground, the layers are set flow indicator, test device and the signal valve at the end, the signals are sent to the fire control center for processing. The project of automatic sprinkler system points 4 area. Roof water tank for 30 cubic meters for fire water tank, storage 10 min, indoor fire hydrant system water sprinkler system. The early stages of the automatic sprinkler system and fire hydrant system fire extinguishing by water tank water supply, water supply from the basement of the late fire pump and flowing water supply pump.
Keywords: water supply system, drainage system, fire hydrant system, automatic sprinkler system, rain water syste
目录
摘 要 1
Abstract 1
第一章 设计说明书 2
1.1给水系统 2
1.2排水系统 3
1.3消火栓给水系统 3
1.4自动喷淋系统 3
第二章 设计计算书 5
2.1、给水系统计算 5
2.1.1生活用水量计算 5
2.1.2设计计算依据 5
2.1.3设计计算 5
2.1.4水池的计算 6
2.1.5、室内给水管网水力计算 7
2.1.6、高区给水系统管网水力计算 10
2.1.7设备的计算与选择 16
2.2丶排水系统计算 17
2.2.1 卫生器具排水定额及排水管道设计秒流量公式的确定 17
2.2.2 横管水力计算 18
2.2.3立管计算 21
2.2.5、污水泵的选择 21
2.2.6、管路管径计算 22
2.2.7、消防电梯排水系统计算 22
2.2.8化粪池设计计算 22
2.3消火栓系统 23
2.3.1、消火栓的布置 23
2.3.2消火栓、水带规格的确定 24
2.3.3水枪喷嘴处所需水压 24
2.3.4、水带阻力 24
2.3.5、消火栓口所需的水压 25
2.3.6、校核 25
2.3.7、水力计算 25
2.3.8减压孔板计算 27
2.3.9水泵接合器设置 29
2.3.10消防水箱 30
2.3.11消防贮水池 30
2.4、自动喷水灭火系统 31
2.4.1、基本设计数据 32
2.4.2喷头的选用与布置 32
2.4.3、水力计算 32
2.5、雨水排水系统 34
2.5.1 降雨强度的确定 34
2.5.2 雨水水力计算 35
2.6、室外管线系统 35
