医院输液监控系统的设计(AT89C51单片机,含电路图,程序)

以下是资料介绍,如需要完整的请充值下载. 本资料已审核过,确保内容和网页里介绍一致.
无需注册登录,支付后按照提示操作即可获取该资料.
资料介绍:

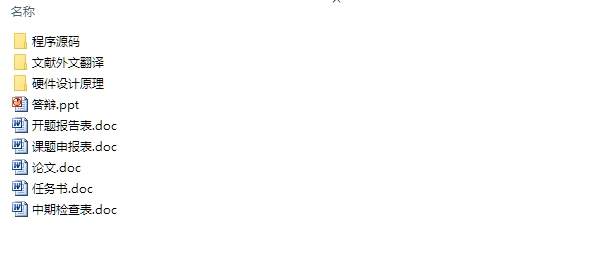

医院输液监控系统的设计(AT89C51单片机,含电路图,程序)(课题申报表,任务书,开题报告,中期检查表,外文翻译,论文15000字,程序,答辩PPT)
摘 要
静脉输液治疗是临床医疗工作中常用的治疗手段,但目前大多数医院及医疗机构都没有实现输液的自动监控管理,因此当输液完成需要换药时,需要医务人员发现及时,否则就会发成一些医疗事故。针对目前我国大部分医院在对病人进行静脉输液治疗是医护人员监护任务繁重的问题,设计了一套面向所有大中小医院和诊所的输液监控系统。本课题基于AT89C51单片机构成的医院输液监控系统,此系统是一个能够代替医务人员监控病人点滴的智能化系统。该系统采用了AT89C51作为核心处理单元,传感器检测液位,LCD液晶显示液位和时间,当药液低于一定标准可通过蜂鸣器报警来提醒医护人员进行处理。该系统低功耗、成本低、性能稳定、便于携带、实用性强。同时该系统可做适当改进,在医疗输血领域有广阔的应用前景。

关键词:输液监控;AT89C51;传感器;信号处理;液位检测

Abstract
Intravenous infusion treatment is commonly used in clinical medical work. But now the infusion of automatic monitoring and management most are not implemented  by hospitals and medical institutions. So when needs to change the medicine after completing the infusion treatment,  it must be founded in time. Otherwise there will  be some medical accidents. Aiming at the current heavy problem of nurses in most of our hospitals when carry on transfusion to the patients , they designed a set of  system which is faced to all the hospitals and clinics. This context introduces a  hospital infusion monitoring system which is based on single chip microcomputer.  This system is a noonpsyche system which can replace the medical personnel to monitor the patient's infusion. This system uses AT89C51 as the core processing unit,  liquid level sensor detection, LCD liquid crystal display liquid level and time. When the liquid is lower than a certain standard , it can use a buzzer alarm to remind  staff for processing.The system is low achievement consumes, low cost and stable function and easy to take, the function is strong.The system can make appropriate  improvement at the same time which has broad application prospects in the area of medical transfusion .

Key words : supervision of transfusion; AT89C51; sensor; the signal processing ;liquid level detection

课题的主要研究内容
本文介绍了一种操作方便、显示直观、可集中控制、具有报警功能的智能型液体点滴监控系统。本装置由液体采集电路、LCD显示与键盘控制电路、报警输出电路以及通信装置组成,通过液压传感器把液滴信号转换为电脉冲信号,并以电信号的形式传给单片机,经运算,分析,处理后单片机将数据传送给LCD显示模块,当液位达到下限值时给予报警,以提醒医护人员。并且采用电池作为单片机系统供电电源,要求系统功耗低、体积小、重量轻、安全可靠,适应医院实际应用要求。

本次设计思想主要是想借助单片机,对医疗点滴输液加以半自动化的控制。为了使系统正常运行,就必须合理设计系统的整体结构,除了对系统总体方案设计,还必须对元器件进行正确的选择。


医院输液监控系统的设计(AT89C51单片机,含电路图,程序)
医院输液监控系统的设计(AT89C51单片机,含电路图,程序)
医院输液监控系统的设计(AT89C51单片机,含电路图,程序)
医院输液监控系统的设计(AT89C51单片机,含电路图,程序)


目 录
第1章  概 述    1
1.1  课题的提出    1
1.2  课题国内外发展现状    1
1.3  课题研究的目的和意义    2
1.4   课题的主要研究内容    3
第2章 系统总体方案    4
2.1  系统总体结构规划    4
2.2  元器件的选择    4
2.3  本章小结    6
第3章 系统的硬件设计    7
3.1  信号处理模块设计    7
3.2  监测模块设计    11
3.3  信息显示模块设计    13
3.4  时钟模块设计    14
3.5  按键电路设计    16
3.5  报警模块设计    16
3.6  本章小结    17
第4章 软件设计及调试    18
4.1  系统程序框图设计    18
4.2  LCD液晶显示程序设计    19
4.3  按键电路子程序设计    21
4.4  软件设计应用环境简介    22
4.5  软硬件调试    23
4.6  本章小结    24
结 论    25
参考文献    26
致 谢    27
附录1    28
附录2    29
