N26型球化机设计(含CAD零件图装配图)

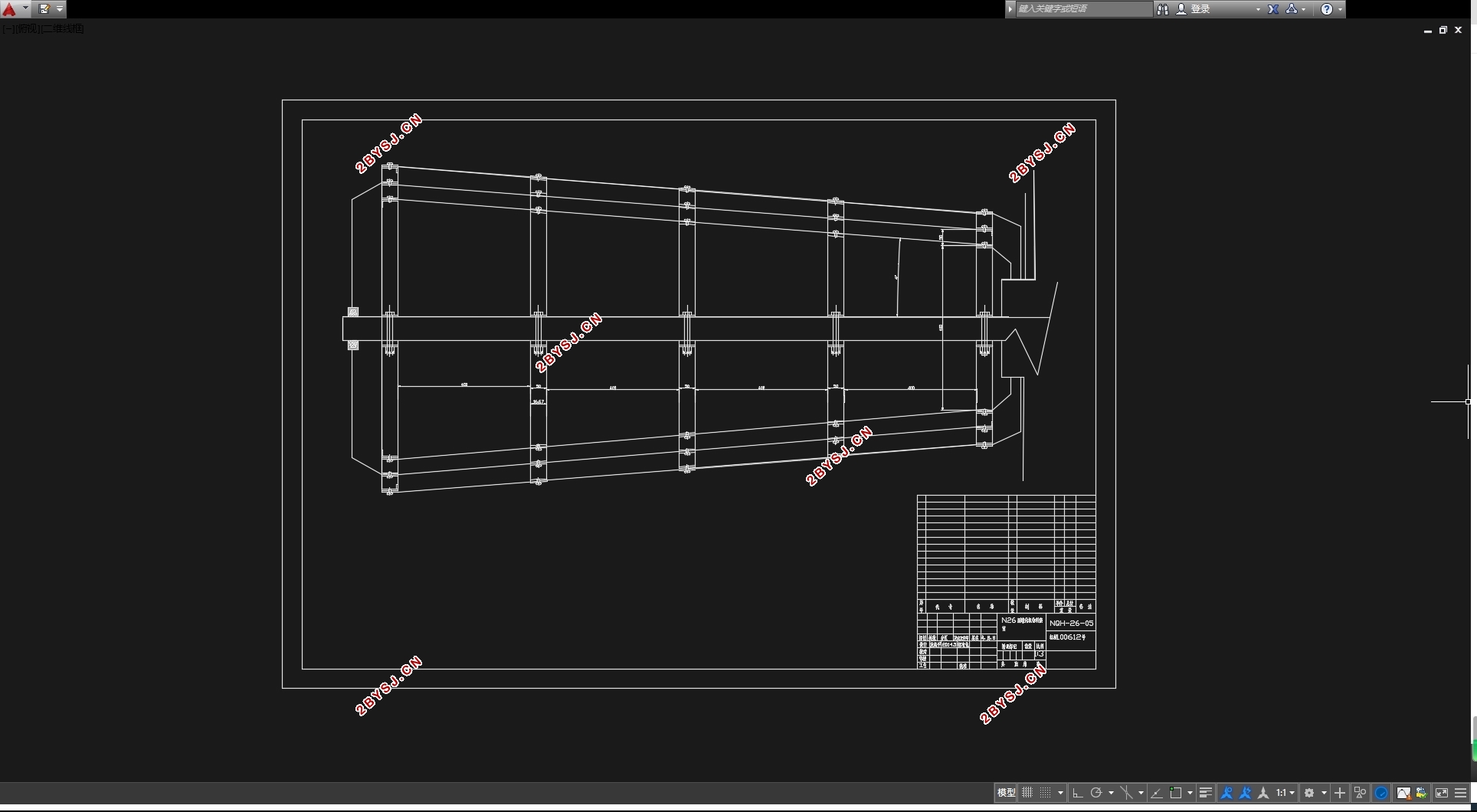

N26型球化机设计(含CAD零件图装配图)(任务书,开题报告,论文说明书11000字,CAD图7张)
摘要
本文主要内容是关于粉体特性和N26球化机的设计说明。首先，介绍了粉体技术的发展和粉体研究的目的。其次，是对粉体特性的介绍，包括颗粒粒径，颗粒形状因数，粒径分布，粉体的流变学，粒度的测定等方面，其次，是对N26球化机的计算与设计。球化机是一个新概念，它是把筛分机械的筛分功能和球磨机的打磨功能结合在一起，开发出来的一种粉体机械。球化机的工作包括对物料的打磨和筛分作业处理；N26型球化机能让物料达到一定的球度。N26球化机的工作原理是物料先从进料漏斗进入机体，经螺旋传动装置被送进具有球磨功能的功能模块，并在筛分模块的作用下，当物料达到一定的粒度和球度后，便从出料口排出。我的毕业设计就是对球化机的认识和研究，并设计出N26球化机的总体结构，完成球化机的相关计算。
关键字：粉体工程  粉体特性  球化整粒机

N26 spheroidization entire grain of machine
ABSTRACT
     The this article primary coverage is about the powder characteristic and N26 spheroidization entire grain of machine design calculation showing. First, this article introduced the powder body project development and the powder body studies goal. Next, is to the powder body characteristic introduction, including the pellet particle size, the grain shape factor, the grain-size distribution, the powder body rheology, the granularity measures the grade aspect. Last, is about the N26heroidization entire grain of machine design. Spheroidizes the entire grain machine is a new concept, it is sieves the machinery the screening function and the ball mill polish function unifies in together, develops one kind of powder body machinery. Entire grain of machine work including to material polish and screening job processing. But N26 spheroidization entire grain of function lets the material achieve certain sphericity. The N26 spheroidization entire grain of machine principle of work is the material first enters organism from the feeding funnel, is fed in after the screw gearing has the ball grinding function function module, and in under screening module function, after the material achieved certain granularity and the sphericity, then discharges from the discharge hole. My graduation project is to spheroidizes the entire grain of machine understanding and the research, and designs the N26 spheroidization entire grain of machine overall structure, completes spheroidizes the entire grain of machine correlation computation.
Key words: The powder body project powder body characteristic spheroidizes the entire grain machine



目录
摘 要    I
BSTRACAT    II
目录    III
第一章　引言    1
   1.1  粉体工程的发展和研究    1
1.1.1  粉体工程的的发展    1
1.1.2  粉体研究的目的    1
1.1.3  粉体定义和粉体颗粒的种类    1
1.1.4  粉体技术的发展及分类    2
第二章  粉体特性    3
2.1  颗粒粒径    3
2.1.1  用单个颗粒的三维尺寸来表示    3
2.1.2  用统计平均径表示    4
2.1.3  用当量直径来表示    4
2.2  颗粒形状因数    5
2.2.1  颗粒的扁平度和伸长度    5
2.2.2  表面积形状因数和体积形状因数    5
2.2.3  球形度    6
2.3  粒径分布    6
2.3.1  粒度的频率分布    7
2.3.2  累积分布    9
2.4  粉体的流变学    9
2.4.1  粉体的摩擦角    9
2.4.2  附着力    12
2.4.3  粉体压力计算    13
2.4.3  粉体在料仓中的流动形式    15
2.5  粒度的测定    16
2.5.1  沉降法    16
2.5.2  激光法    17
第三章N26型球化机设计计算    19
3.1  N26型球化机输送机螺旋直径的计算    19
3.2  料斗的选用    20
3.3  圆锥桶筛    21
3.4  N26型球化机的功率计算及电机选用    22
3.5  轴的选择和校对    23
    3.6轴承的校核....................................................................................................................27
3.7联轴器的选择与校核……………………………………………………………….29
3.8 键的设计与校核…………………………………………………………………….30
3.9  减速器的选择…………………………………………………………………………....31
结  语    32
参 考 文 献    33
致谢    35
