圆梳机中副夹板装置设计(含SolidWorks三维图)

圆梳机中副夹板装置设计(含SolidWorks三维图)(任务书,开题报告,外文翻译,论文说明书13400字,SolidWorks三维图,动画视频)
摘 要
如今我国的绢纺业采取的仍是半机械半手工化的生产方式，产业升级迫在眉睫。但要涉及对于整个传统绢纺机器的改进，包括机器的电力系统、绢纺的制棉设备的改进、设备的夹板的设计等等。在绢纺业纺绵的各个机器结构中并没有“副夹板”这一说法。考虑到要实现梳绵的自动化，就要取代人工取绵的过程也就是用绵棒取绵的过程，此时就要有一个装置能够取代绵棒来夹住绵条。便引入“副夹板”这一概念。而本文主要针对的是副夹板装置设计，即对于副夹板进行改进设计。主要工作和创新成果如下:

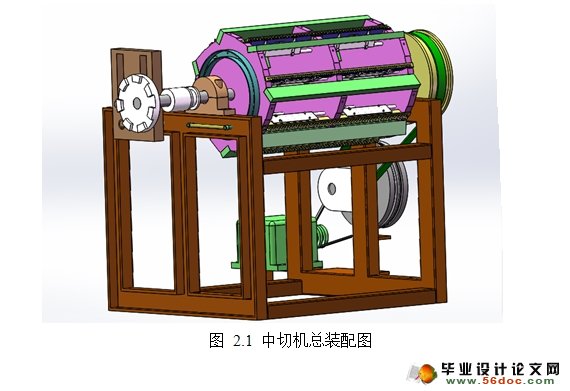

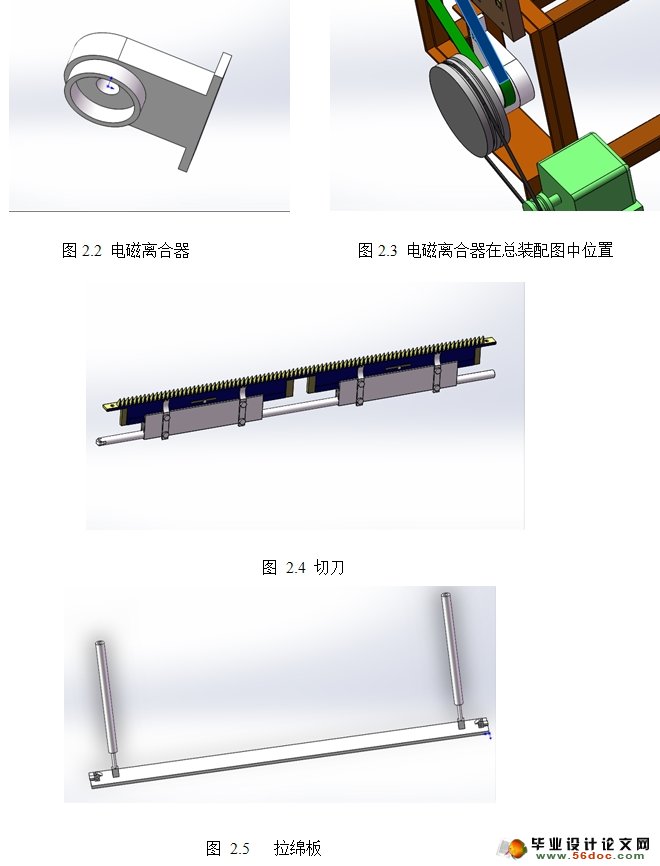

1.对传统的中切机的改进。原有的中切机需要人工剪绵，并且伴随着切换电机转向等问题带有一定的危险性。而团队则设计了一种全自动切绵机，对原有结构进行重新改良优化，改进后的切绵机主要由切绵滚筒、罗拉、支架、电机、电磁离合器等组成，实现切绵机的自动喂绵、自动切绵以及自动取绵。这样的全新的中切机不仅是能够实现自动化，而且提高了工厂的安全系数。

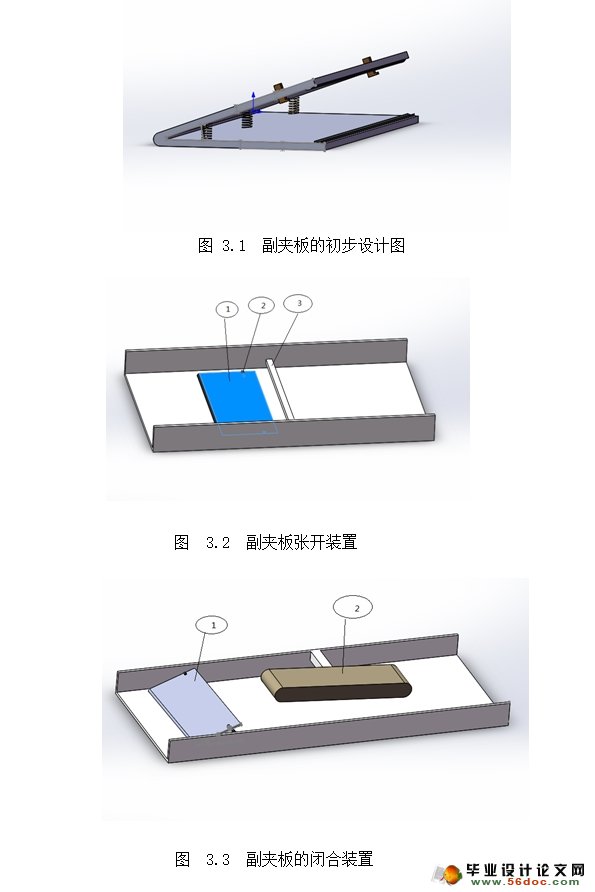

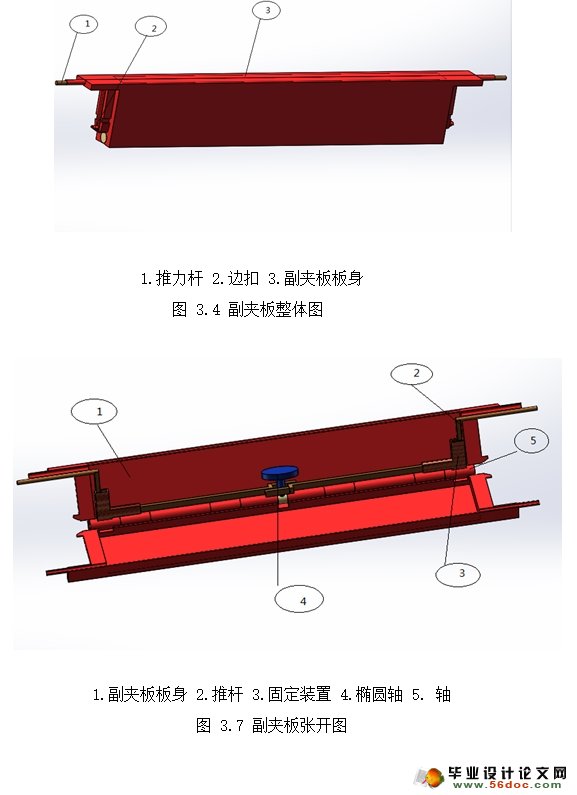

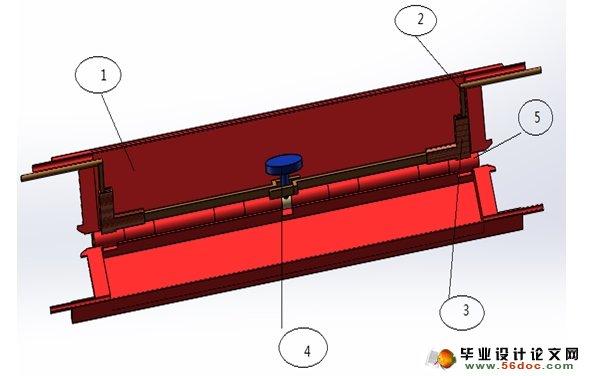

2.对副夹板的设计。在传统的圆梳机中并没有副夹板这一装置，而是人为的用一根绵棒把在中切机上切好的绵条转移到圆梳机上。但是要实现整个工业流程的自动化，就必须设计出一种副夹板来取代绵棒。可以说副夹板的设计是整个团队的开始同样也是重中之重。对于副夹板的设计主要涉及:副夹板的整体造型、副夹板的内部构造、副夹板材料的选取以及副夹板的锁死装置等。

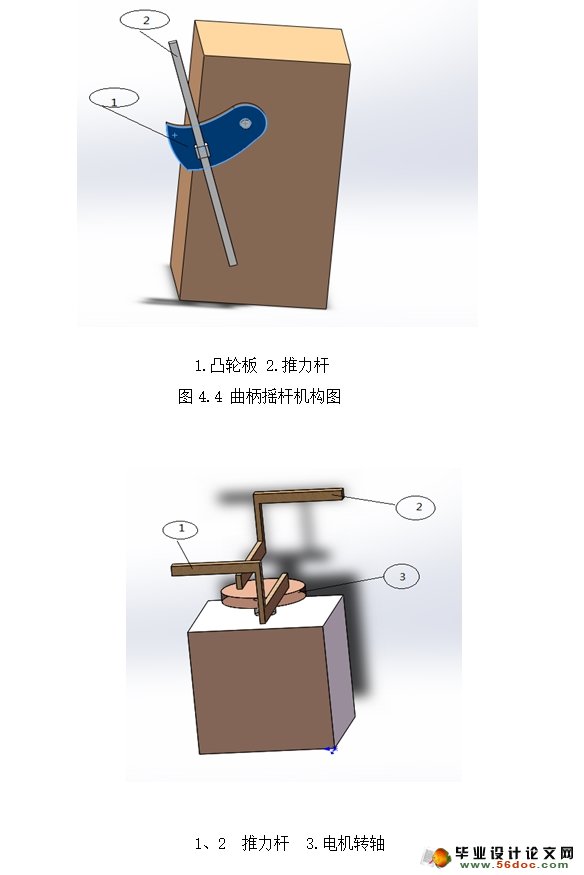

3.副夹板的移动方式即对于副夹板的移动平台的设计也是本文的研究内容。副夹板在平台上是立着还是平躺着、当其张开闭合在移动平台的状态还是其在移动过程中的稳定性都能对整个团队的后续设计产生或多或少的影响。因此对于副夹板移动平台的设计同样是本文工作之一。

关键词：绢纺业；圆梳机；副夹板；中切机；移动平台

The design of vice plywood in the circular comb
Abstract
Today, China's silk industry that is still semi-manual semi-mechanical methods of production, industrial upgrading imminent. Due to China's traditional textile industry gradually transformed into automation, engineering thereon enormous.To involve the whole traditional silk spinning machine improvements, including the machine's power system, improve the system for cotton silk devices, equipment, etc. Silk cotton spinning industry in each of the machine structure and there is no "vice plywood," the statement. View to achieving comb cotton automation, it is necessary to replace the manual process of taking cotton is cotton with a cotton stick to take the process, then there should be a means to replace cotton stick to grip the cotton strip. And in the next round on a comb carded cotton, when it is still able to put cotton firmly clamped. We will introduce the "vice jaws" of the concept.And this article is aimed primarily circular comb machine vice jaw design means that for vice jaws to improve the design .The main work and innovations are as follows:
1.Improvement in the traditional cutting machine, of course, this is combined with our entire team of the cutting machine to be modified .The original need for manual cutting machine cut cotton, and are associated with switching the steering motor and other issues with a certain degree of risk.And our team is designing an automatic cut cotton machine, the original structure again improved optimization, improved cotton cut mainly by cutting cotton roller, roller, brackets, motors, electromagnetic clutches and other components to achieve cut cotton machine automatic feeding cotton, cotton automatic cutting and automatic pick cotton. In this new cutting machine not only can be automated, but also improve the safety factor of the plant.
2.Design of vice jaws. In the conventional circular comb machine and not vice splint that means, but with a man on a cotton stick to the cutting machine cut Mian transferred to the circular comb machine. But to achieve automation of the entire industrial process, it is necessary to devise a deputy to replace plywood cotton stick. It can be said Deputy splint is designed to start the whole team is also a top priority. For the vice jaws designed mainly related to: the overall shape of the Deputy plywood, plywood deputy internal structure, select and deputy vice splint splint material lock devices.
3.Moves deputy splint that is designed for vice jaws mobile platform is to study the contents of this article. Deputy splint on the platform is standing or lying flat, when it opened in the closed state of the mobile platform is its stability during movement in the can produce more or less influence on the subsequent design of the entire team. So for design vice jaw moving platform is also one of the working of this article.

Keywords: silk industry; circular comb machine; deputy splint design; cut machine; mobile platforms


目  录
摘 要    III
Abstract    IV
第一章  绪论    1
1.1  绢纺业背景及发展趋势    1
1.2  结合国外绢纺业分析我国目前发展的不足    1
    1.2.1 日本绢纺业的发展革新    1
    1.2.2   意大利绢纺业的发展革新    2
    1.2.3 我国绢纺发展的状况    2
1.3 绢纺工业    3

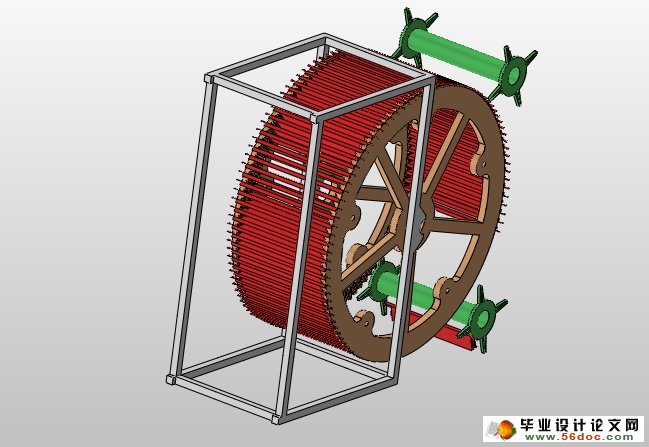

1.4  圆梳机结构    5
1.4.1  圆梳机的作用    5
1.4.2  圆梳机的结构    5
1.5  论文主要研究的内容及意义    6
第二章  中切机的改进    7
2.1  传统的中切机    7
2.1.1  中切机的介绍    7
2.1.2  中切机改进设想    7
2.2  改进后的中切机的工作原理    8
2.3  基于Soildworks 对中切机进行建立模型    8
2.3.1  中切机的总体装配图    8
2.3.2  中切机零件功能介绍    9
2.4  本章小结    11
第三章  副夹板的设计    12
3.1  副夹板的设计思想    12
3.1.1  副夹板初步方案设计    12
3.1.2  副夹板的成形设计    15
3.2  副夹板的材料选取    17
3.3  副夹板的受力分析    19
    3.4   本章总结    20
第四章  移动平台与推力装置的设计    21

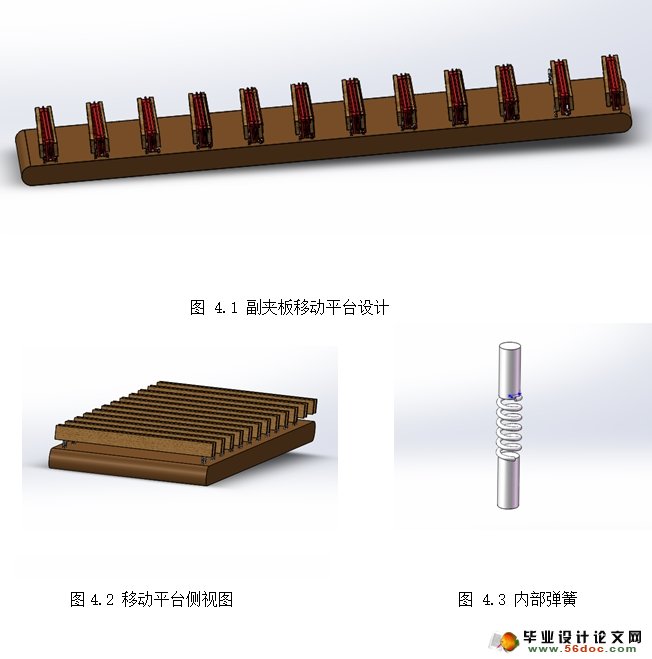

4.1 副夹板的移动平台的设计    21
4.2  推力装置的设计    22
4.3  本章小结    23
第五章    总结与展望    25
参考文献    27
致谢    28
