DH-0.03/120活塞泵的设计(含CAD零件图装配图)

DH-0.03/120活塞泵的设计(含CAD零件图装配图)(论文说明书17000字,CAD图17张)
摘要
往复泵是泵类产品中出现最早的一种，至今已有2100多年的历史。在旋转式原动机出现以前，往复泵几乎是唯一的泵类。在旋转式原动机出现之后，才逐步地产生了离心泵和转子泵等其他类型的泵。后出现的泵，由于他们的结构比较简单，操作比较方便，而且还有体积小，重量轻、流量均匀等一系列优点，致使原来使用往复泵的地方逐步地为这些泵类所取代。目前，往复泵的产量只占整个泵类总产量很少的一部分。但是，往复泵所具有的特点并没有被其他类型泵所取代。有些特点仍为其他类型泵所不及，因此，它非但不会被淘汰，而且仍将作为一种不可缺少的泵类，被广泛应用。
本文设计的是工作压力为120MPa的小流量泵，其内容主要包括以下几个方面：
(1)查阅相关资料，通过对比，根据参数要求确定超高压小流量泵的总体设计方案；
(2)根据计算，进行活塞环、单向阀等主要零部件的设计和选材；
(3)根据计算，对装置的主要零部件强度进行校核
关键字：超高压 小流量 往复泵

ABSTRACT
Reciprocating pump is one of the pumps which was produced earliest. It has been with us more than 2100 years. Before the appearance of rotating motive, the reciprocating pump is almost the only pump. After the emergence of the rotating motive, it gradually produces centrifugal pump rotor pump and other type of pump. The pump which was produced later has the advantages of relatively simple structure,
Convenient operation, small volume, light weight, uniform flow and so on. It leads to the place which was used by original reciprocating pump was replaced by the light weight, uniform flow pump. At present, the output of reciprocating pump is very few. However, the characteristics of reciprocating pump have not been replaced by other types of pump. Some characteristics are also unique. So, It will not be eliminated, but will remain as an indispensable pumps, and widely used.
The super-pressure and small flux pump (PN120Mpa) was designed in this dissertation. The main work is listed as follows:
(1)    Based on retrieving the documents and comparing, the major designing project of the super-pressure and small flux pump was confirmed according to the parameter;
(2)    According to the calculation, the main parts of the pump such as piston ring, one-way valve and so on were designed with suitable material;
(3)    Intensity of the main parts was checked according to the calculation.
KEYWORDS: super-pressure    small flux        reciprocation pump


目录
摘要    I
ABSTRACT    II
第一章    前言    1
第二章    泵的设计参数确定和工作原理    4

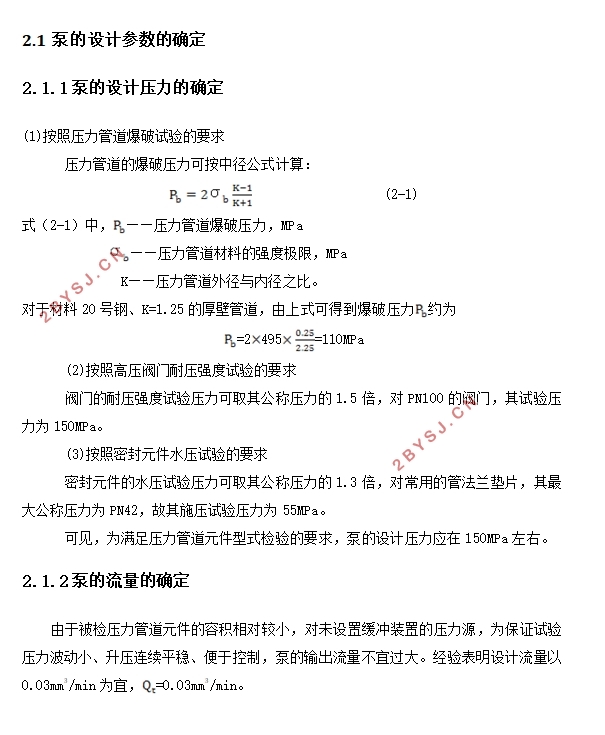

2.1泵的设计参数的确定    4
2.1.1泵的设计压力的确定    4
2.1.2泵的流量的确定    4
2.1.3泵的其他参数的确定    5
2.2泵的工作原理    5
第三章    原动机的选择    7
3.1原动机功率 的选择和确定    7
3.1.1泵的轴功率N和泵的总效率    7
3.1.2原动机功率     7
3.1.3储备系数 和原动机功率选择    8
3.2原动机的选择    8
3.3减速器的选择    10
3.3.1总传动比的确定    10
3.3.2带传动的计算    11
第四章    液力端主要零部件设计    14
4.1液缸体    14
4.1.1液缸体结构特点及选择    14
4.1.2液缸体壁厚确定及强度校核    15
4.2管路    16
4.3泵阀设计    16
4.3.1阀座孔径     17
4.3.2阀板厚度     18
4.3.3阀板与阀座密封接触面宽度b的确定    18
4.3.4阀板直径 的确定    18
4.4活塞环的设计    18
4.5柱塞及其密封    19
4.5.1柱塞    19
4.5.2柱塞密封    20
第五章    传动端主要零部件设计    23
5.1机体    23
5.1.1机体的基本结构形式    23
5.1.2机体的结构设计    23
5.1.3机体的技术要求    24
5.2曲轴    25
5.2.1曲轴的结构特点和选择    25
5.2.2曲轴的受力分析计算    26
5.2.3曲轴强度校核    27
5.2.4曲轴材料及主要技术要求    30
5.3十字头    31
5.3.1十字头结构设计    31
5.3.2十字头销    33
5.3.3十字头强度校核及比压计算    33
5.3.4主要技术要求    37
结束语    39
参考文献    40
致谢    42
