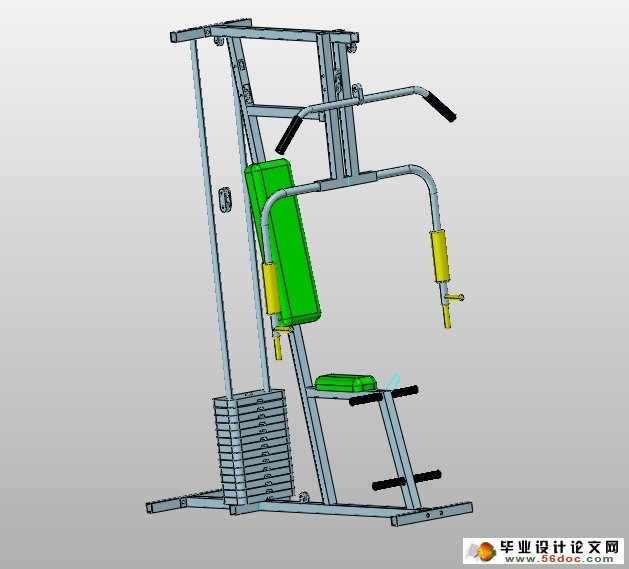

单人多功能健身器材产品3D设计(含CAD图,ProE三维图)

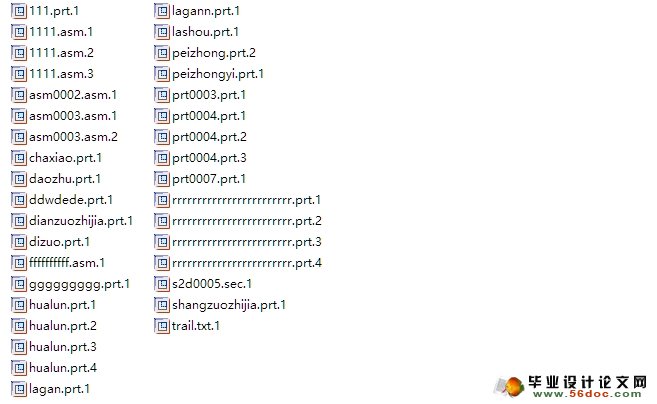

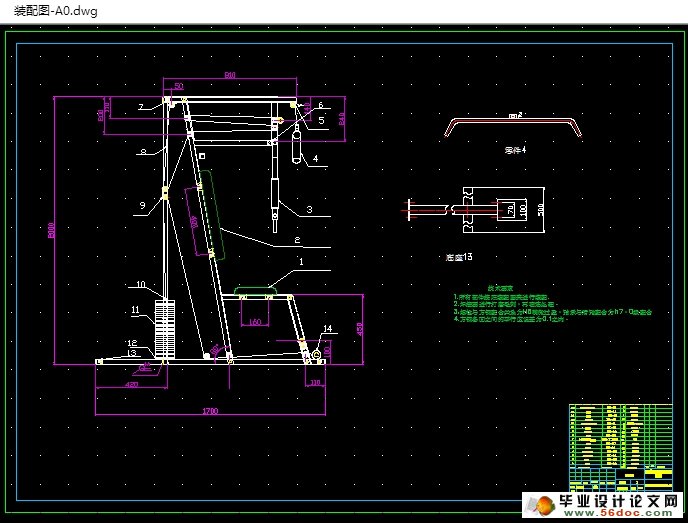

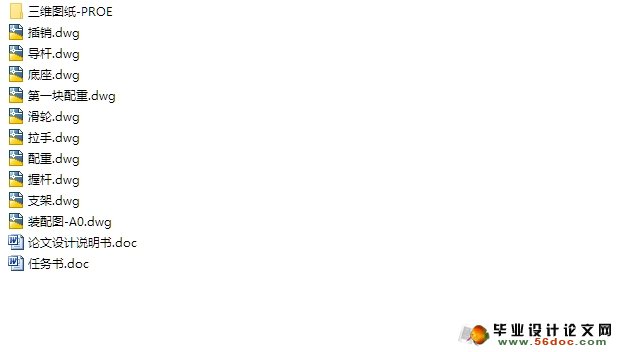

单人多功能健身器材产品3D设计(含CAD图,ProE三维图)(任务书,设计说明书9800字,CAD图纸10张,ProE三维图)
本课题主要针对小型产品3D设计（健身器材），该健身器材的材料主要为板材及钢材，是现今日常生活中一种贴近生活，贴近人们现今生活追求的产品，通过对产品各部分材料的受力选取和各种加工方式的分析和比较，最终设计出的一款健身产品，该课题从产品结构工艺性，各种材料的刚性精准度，锻造，焊接都有详细的设计，通过整个设计过程表明，各种材料的选择，同时对加工工艺进行分析，随着社会的发展，人们生活水平的提高，生存需求的极大保障，人们开始了更高的需求，生活品质的追求，健康的追求，人们开始越来越关注自己的健康,因为生活在今天的中国水平不同,并不是所有人都能每天去健身房锻炼,所以设计符合广大人民需要,同时在此条件下常见的，人人能负担得起的健身器材具有广阔的市场空间,但是现在市场上的设备大多是单一类型的多功能组合健身器材,由于其市场价格,使设备到目前为止仍然不能进入普通家庭,设计一个低价格,功能实用的健身器材是我设计的主题,应注意避免像市场上单一设备利用率低的问题,同时满足人民的需求,另外还需要一个美丽,安全,耐用,容易维护,容易制造并且低成本的健身器材。
为此,我到很多健身房和一些健身器材商品柜台进行实地考察,同时在互联网上收集数据,了解培训师和用户的经验,调查他们的需求同时,总结了各个方面的需求,设计只有一个多功能健身机。本作品具有以下特点：
1：每个作品只能进行单人锻炼。
2：使用方便，使用方便能够满足用户顺利操作和锻炼调节。
3：安全性好，工作平稳，安全系数值取稍大。
4:  锻炼功能组合合理，符合大众健身的需要。
5：  制造加工方便，性价比高。
6： 结构紧凑，拼装设计，便于包装，运输。
因为我在学校学习的基础不够，知识水平有限,所以很难避免在设计有很多的不足,我请求老师给予宝贵的改正意见。
关键词: 3D设计 功能实用 健身器材

Abstract
All-people body-building, is beneficial to the country, beneficial to the people, develops the people along with the society to start to take own health more and more, but in present's China, because the living standard level is uneven, therefore is not therefore the human can expend result in arrive at the gymnasium to carry on the fitness exercise daily, therefore designs one section to suit the general populace's needThe belt massager which in the universal practice meanwhile can withstand the single who or the multi-people fitness has the broad market space, although but in present's market's fitness instrument majority is the single type multi-purpose combination fitness instrument, but because its disagreement market marked price, thus enables the fitness instrument until now still to enter ordinary others, for this reason designs section of moderately-priced, and the function meets the need, the practical fitness instrument is I Design subject, must pay attention avoids likely in the market single fitness instrument's use factor low question, simultaneously meets people's needs, in addition also requests the outlook to be artistic, safe durable, the work is steady, is advantageous for the maintenance, the manufacture processing is convenient, the cost is low importantly.
Therefore, I have visited many gymnasia and some fitness special counter specially carry in-the-spot investigation, simultaneously accesses the net the collection material, understood that the general fitness training and user's feeling, simultaneously investigates their need, summarizes various aspects request, has designed this section, but person multi-purpose belt massagers. this work has following characteristic:
1: Each work can only carry on the single to exercise. 2: The easy to operate, the easy to operate can satisfy the user to operate and the exercise adjustment smoothly. 3: The security is good, the work is steady, the security coefficient value takes slightly in a big way. 4: The exercise function combination is reasonable, meets the need which the populace fitness. 5: The manufacture processing is convenient, the performance-to-price ratio is high. 6: The structure is compact, the assembling design, is advantageous for the packing, the transportation.because I am limited in the school study's elementary knowledge level, therefore has many deficiencies unavoidably in the design, requests earnestly fellow teachers to give the criticism to point out mistakes.
Key words：3 d design  functional  Fitness equipment


目 录
    前 言     1
    第一章 现今体育健身器械的特点及方案的确定    1
    1.1方案的确定与分析    1
    1.2设计要求    2
    1.3整体结构    2
    第二章 单人多功能健身机的设计过程    4
    2.1设计材料的选定    4

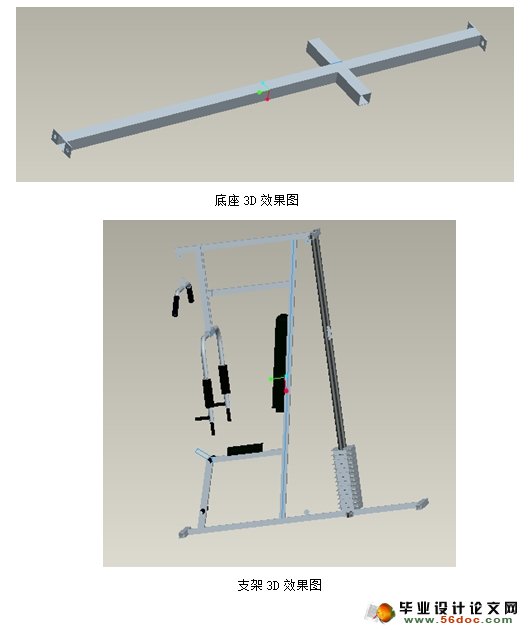

    2.2底座的设计    5
    2.3支架的设计    6
    2.4配重的设计    7
    2.5滑轮的设计    9
    2.6其他零件的设计    11
    2.7标准件的选定    11
    2.8配合公差的设计    12
    2.9装配    12
    第三章 设计总结    14
    参考文献    15
    致 谢    16
