驱动式滚筒输送机优化设计(含CAD零件装配图,SolidWorks三维)

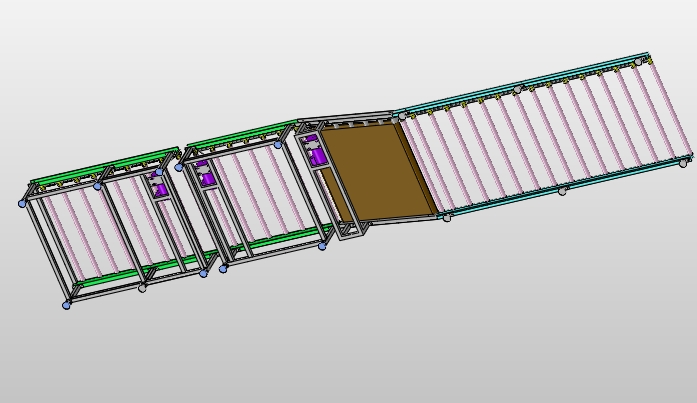

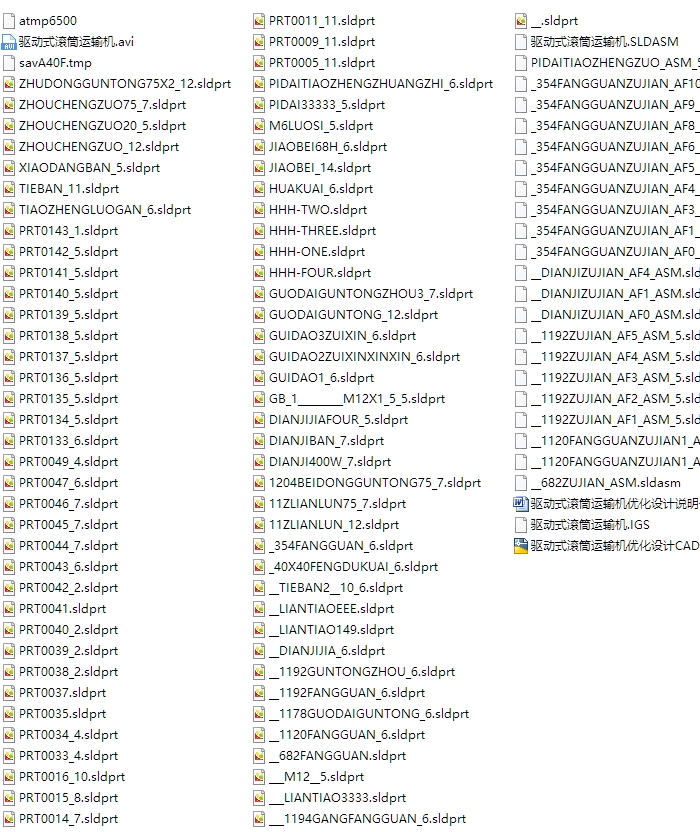

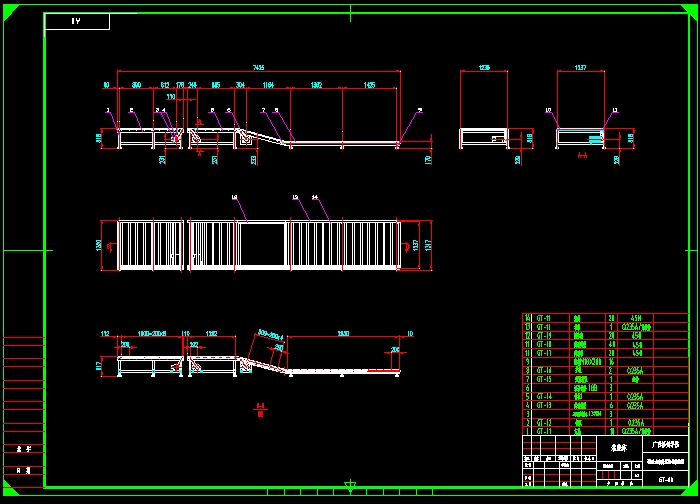

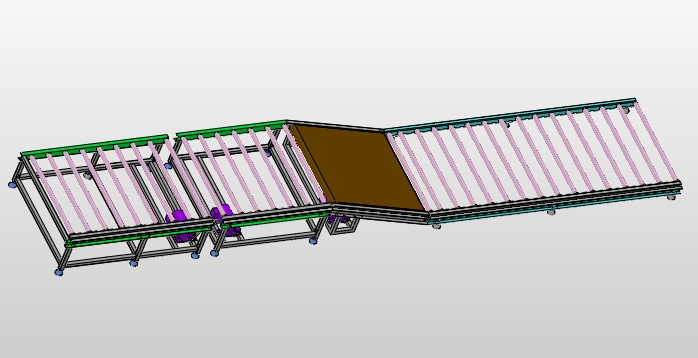

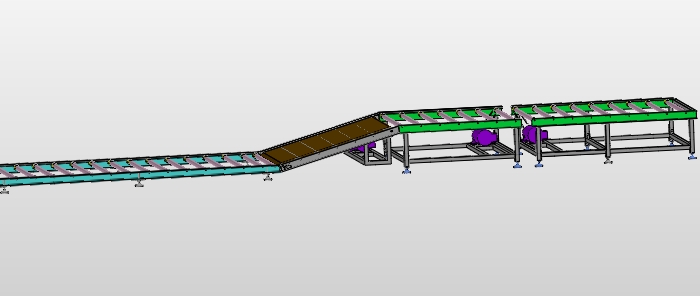

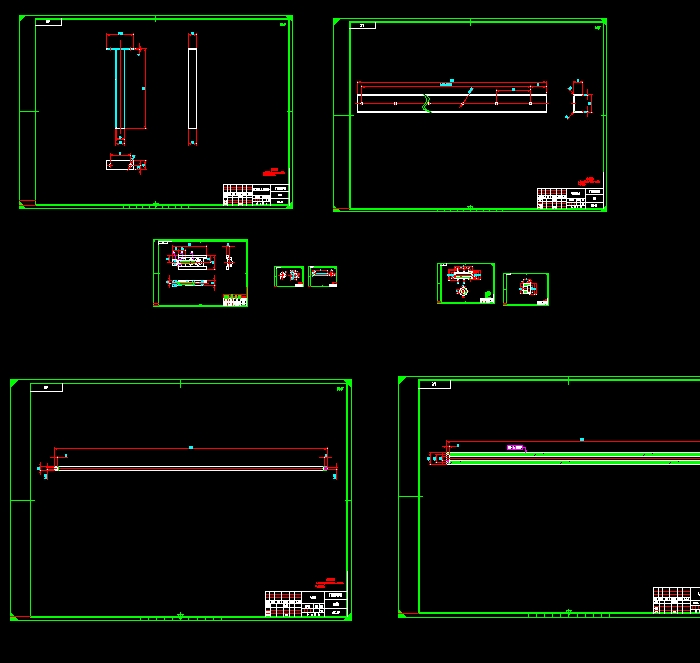

驱动式滚筒输送机优化设计(含CAD零件装配图,SolidWorks三维造型)(论文说明书10900字,CAD图纸10张,SolidWorks三维图)
摘要
    本文是关于驱动式滚筒输送机的优化设计，首先对驱动式滚筒输送机作了简单的概述；接着分析了驱动式滚筒输送机的选型原则及计算方法；然后根据这些设计准则与计算选型方法按照给定参数要求进行选型设计；接着对所选择的输送机各主要零部件进行了校核。最后简单的说明了输送机的安装与维护。目前，驱动式滚筒输送机正朝着长距离，高速度，低摩擦的方向发展。在驱动式滚筒输送机的设计、制造以及应用方面,目前我国与国外先进水平相比仍有较大差距,国内在设计制造驱动式滚筒输送机过程中存在着很多不足。
    对于驱动式滚筒输送机的优化设计，通过对比对照，对传统的驱动式滚筒输送机的结构进行了改进和优化，使得此种类型的驱动式滚筒输送机的使用范围更广泛，更加灵活，并且对今后的选型设计工作有一定的参考价值。
关键词：驱动式滚筒输送机；设计；传统；参考

The Optimum Design of Drive Roller Conveyer
Abstract
    This graduation design is about the optimum design of the roller conveyor drive first driven roller conveyor has been made a brief overview; then drive roller conveyor has been analyzed the selection principle and the calculation method; and has been calculated based on these design criteria and selection method in accordance with the given parameters requirements for selection design; then the conveyor main parts has been checked. The conveyor has been a simple description of the installation and maintenance. At present, the driving roller conveyor has been towards long distance, high speed, low friction direction. The driving drum of belt conveyor is designed and manufacture and application, at present our country and the overseas advanced level compared to still have a large gap, domestically driven roller conveyor has been in the design and manufacturing process exists many problems.
    Driven roller conveyor has been the design, optimization design, has been adopted compared with the control, the drive traditional roller conveyor structure has been improved and optimized, this type of drive roller conveyor has been made more widely, more flexible, and has been for future design and selection have been to have certain reference value.
Key words：Driving roller type conveyer optimal; Design;  Transport;  selection


目录
第一章 课题研究的内容    1
   1.1 驱动式滚筒输送机的发展概况    1
   1.2 驱动式滚筒输送机的应用    3
   1.3 驱动式滚筒输送机的发展方向    4
   1.4 研究的目的和意义    6
第二章 机械传动部分的选型计算    7

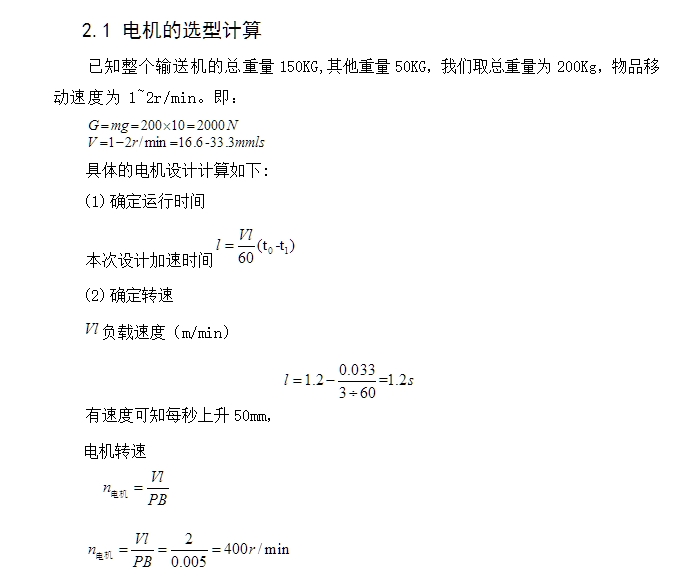

   2.1 电机的选型计算    8
   2.2 链传动的选型计算    10
   2.3 带及带速的选择    14
       2.4.输送机宽度的计算    15
    第三章 驱动式滚筒输送机的优化设计    17
   3.1 驱动式滚筒输送机的方案布局图的确定    18
   3.2 驱动式滚筒输送机的工作原理    18
   3.3 驱动式滚筒输送机主体结构的优化    19
       3.3.1 滚筒输送机传动方式的优化设计    19
       3.3.2 滚筒输送机整体-个体可分解式优化设计    20
    第四章 各重要组成部分的强度校核    21
    4.1 槽钢侧板的强度校核    22
    4.2 轴承强度的校核    23
结论    25
    参考文献    26
致谢    27
