螺母盒零件冲压工艺与冲模设计

以下是资料介绍,如需要完整的请充值下载. 本资料已审核过,确保内容和网页里介绍一致.
无需注册登录,支付后按照提示操作即可获取该资料.
资料介绍:

螺母盒零件冲压工艺与冲模设计(含任务书,开题报告,论文说明书15000字,外文翻译,10张cad图纸)
摘要:近年来,我国家电工业的高速发展对模具工业,尤其是冷冲模具提出了越来越高的要求,2004年,冷冲模具在整个模具行业中所占比例已大大上升,据有关专家预测,在未来几年中,中国冷冲模具工业还将持续保持年均增长速度达到15%左右的较高速度的发展。
冲压成型是金属成型的一种重要方法,它主要适用于材质较软的金属成型,可以一次成型形状复杂的精密制件。本课题就是将石化、化工、电力等行业的法兰密封结构中的垫片作为设计模型,将冷冲模具的相关知识作为依据,阐述冷冲模具的设计过程。
本设计对螺母盒进行的级进模设计,利用Auto CAD软件对制件进行设计绘图。明确了设计思路,确定了冲压成型工艺过程并对各个具体部分进行了详细的计算和校核。如此设计出的结构可确保模具工作运用可靠,保证了与其他部件的配合。并绘制了模具的装配图和零件图。
本课题通过对螺母盒的冲压模具设计,巩固和深化了所学知识,取得了比较满意的效果,达到了预期的设计意图。
关键词:冲压模具 冲压成型 模具设计 金属成型

Nut box parts stamping process and die design
Abstract:In recent years,the rapid development of China's household electrical appliance industry of mold industry,especially Die with the increasing demands put forward in 2004,Die in the proportion of the proportion of the entire mold industry has been greatly increased,experts predict,In the next few years, China will continue to maintain industrial Die average annual growth rate reached 15% of the high rate of development. In the next few years, China will continue to maintain industrial Die average annual growth rate reached 15% of the high rate of development. In the next few years, China will continue to maintain industrial Die average annual growth rate reached 15% of the high rate of development.
Stamping is an important method of metal forming, it is mainly applied to relatively soft metal forming, can be a molding of precision parts of complex shape. This topic is to petrochemical, chemical, electric power industries gasket flange structure as a design model, Die related knowledge will be used as the basis to explain Die design process.
The design of the nut box for the progressive die design, the use of Auto CAD software to design parts drawing. Clear design ideas, determine the process of stamping and forming part of the various specific details of the calculation and verification. The structure of such a design die is used to ensure reliable, to ensure coordination with other components. And the mapping of the mold assembly and part drawings.
The topic box on the nut stamping die design, consolidate and deepen the knowledge, and achieved satisfactory results, to achieve the desired design intent.
Keywords: Stamping die Stamping Molding Die Diesign Metal Forming

毕业设计(论文)使用的原始资料(数据)及设计技术要求:

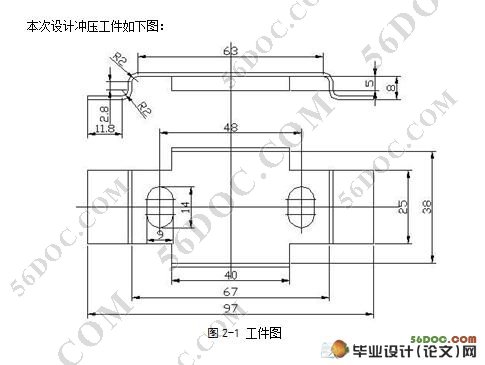

1. 螺母盒零件图
2.生产纲领:中等批量
3.要求完成零件的冲压工艺分析和冲压工艺规程的编制。
1) 分析冲件成形工艺及坯料展开
2)编制螺母盒零件冲压工艺
3)完成螺母盒冲裁模设计

工件材料采用08AL。08AL是优质碳素结构钢的一种,一般用作冷冲压薄板钢中的Al脱氧镇静钢冷轧板,其命名规则类同碳素结构钢,其两位数字表示钢中平均碳质量分数的万倍,即“08”表示钢中平均碳质量分数为0.08%,“A”表示质量等级,“L”为“拉”字的汉语拼音首字母,表示其拉伸性能好。主要力学性能(试件尺寸25mm):正火930℃、σs=185 MPa、σb=325Mpa、σ5/%≥33、硬度(未热处理)131HB。
主要用于制造4mm以下的各种冷冲压构件,如车身、驾驶室、各种仪表及机器外壳等。

螺母盒零件冲压工艺与冲模设计
螺母盒零件冲压工艺与冲模设计
螺母盒零件冲压工艺与冲模设计
螺母盒零件冲压工艺与冲模设计
螺母盒零件冲压工艺与冲模设计

#p#副标题#e#
目 录
1 绪 论................3
1.1 模具行业的发展现状及市场前景 3
1.2 冲压工艺介绍 3
1.3 冲压工艺的种类 4
1.4 冲压行业阻力和障碍与突破 5
2 冲裁件的工艺分析 7
2.1 工件尺寸精度 8
2.2 工件展开长度计算 8
3 冲裁工艺方案的确定 10
4 模具结构形式的确定 11
5 模具总体设计 12
5.1 模具类型的选择 12
5.2 操作方式 12
5.3 卸料、出件方式 12
5.4 确定送料方式 13
5.5 确定导向方式 13
6 模具设计计算 14
6.1 排样、计算条料宽度、确定步距、材料利用率 14
6.2 冲压力的计算 18
6.3 压力中心的确定 20
6.4 模具刃口尺寸的计算 21
6.5 模具弯曲部分工作尺寸计算 23
7 主要零部件设计 27
7.1 工作零部件的结构设计 27
8 校核模具闭合高度及压力机有关参数 33
8.1 校核模具闭合高度 33
8.2 冲压设备的选定 33
9 设计并绘制模具总装图及选取标准件 34
10 模具的安装调试 35
10.1 模具的安装调试 35
参考文献 36
