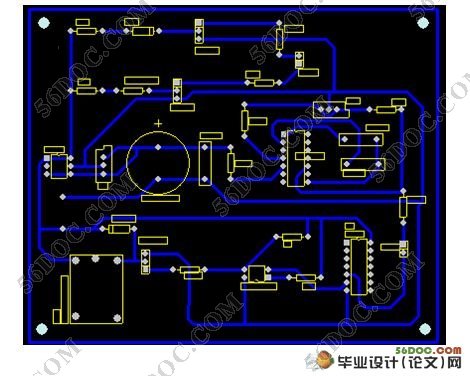

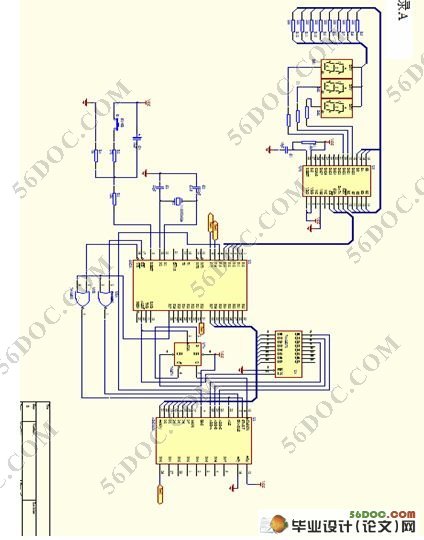

基于单片机的防酒后驾驶控制系统电路设计(附电路图,原理图,PCB)

以下是资料介绍,如需要完整的请充值下载. 本资料已审核过,确保内容和网页里介绍一致.
无需注册登录,支付后按照提示操作即可获取该资料.
资料介绍:

基于单片机的防酒后驾驶控制系统电路设计(附电路图,原理图,PCB)(含任务书,开题报告,外文翻译,毕业论文21000字)
摘要:防酒后驾驶控制系统越来越成为趋势。它是计算机技术与自动控制理论及酒精测量技术紧密结合的产物。
本课题设计一种用于汽车的具有检测及控制功能的酒精浓度智能测试系统,并实时显示酒精浓度,实现了自动检测和控制功能。该系统以STC89C51单片机为核心,由酒精传感器MR513、ADC0809转换器、语音报警、LED显示、继电器以及电机等构成。将采集到的模拟电压信号经A/D转换,送入单片机,通过单片机进行控制计算输出控制信号;在气敏传感器感应到了酒精浓度超标时,将电信号转变成数字信号输出,并发出鸣响警示驾驶人员不要驾驶,并用继电器锁闭汽车的点火系统,同时发出声光报警,并通过数码管实时显示酒精浓度,实现了自动控制功能。从而保障驾驶员和乘客的安全。
本系统设计可以应用到实际生活中,可以很好的阻止司机酒后驾车,减少交通事故的发生率。可见该电路具有广泛的应用价值,值得深入研究。
关键词:气体传感器 模数转换 单片机 气体测量

Based on SCM preventing drunken driving control system circuit design
Abstract: The drunken driving control system are gaining in trends. It is the computer technology and automatic control theory and control technology closely integrated alcohol measurement product.
In this paper, study design car for the detection and alarm functions with an alcohol concentration of intelligent system, and real-time display alcohol concentration.It has realized automatic detection and control function.In this thesis, the concentration of alcohol can be measured and displayed by using the gas sensor based on STC89C51 Single-chip Microcomput . By alcohol sensor MR513, ADC0809 converter, voice alarm, LED display, relays and motor, etc. Will the collected simulation voltage signal via A/D conversion, into A single-chip microcomputer, Through the single-chip microcomputer control calculation output control signal.When the gas sensor induced strength of alcohol exceeding the allowed figure, transformed the digital signaling output the electrical signal. And sends out resounds the caution to drive the personnel not to drive, and locks up automobile's ignition system with the relay.Meanwhile give out sound and light alarm, and through digital tube real-time display alcohol concentration, has realized automatic control function.,thus safeguards the pilot and passenger's safety.
This system design in the warning circuit can be applied to actual life, the prevention driver that it can be better on the other hand drives after drinking, reduce the incidence of the traffic accident. It is obvious this circuit has extensive using value, worth further investigating
Keyword: Gas sensor  A/D conversion  Single-chip Microcomput  Gas measurement

课题的研究内容
为了满足汽车市场的需要和给客户提供一个安全保险的防酒后驾驶控制系统,本设计综合运用了单片机技术、传感器采集技术、控制技术等来实现对司机的酒精浓度进行测量和控制汽车启动功能。本系统要实现的具体功能为: 能通过高灵敏度的呼气式酒精传感器检测司机的酒精摄入量,当司机体内酒精浓度超标时,控制系统会自动切断汽车启动系统,使汽车无法正常启动。系统可显示司机摄入的酒精浓度,并具有实时监测和光电、语音报警功能。总之,本设计应该具有防酒后驾驶控制系统的基本功能,对防酒后驾驶控制系统的相关技术进行很好的研究和应用,符合防酒后驾驶控制系统的技术发展趋势。


基于单片机的防酒后驾驶控制系统电路设计
基于单片机的防酒后驾驶控制系统电路设计
基于单片机的防酒后驾驶控制系统电路设计
基于单片机的防酒后驾驶控制系统电路设计



目 录
第一章 前言    1
1.1选题的依据及意义    1
1.2国内外研究及发展趋势    2
1.3课题的研究内容    3
第二章 传感器检测原理    4
2.1传感器原理    4
2.2传感器检测原理    7
第三章 防酒后驾驶控制系统组成及工作原理    10
3.1系统设计要求与技术指标    10

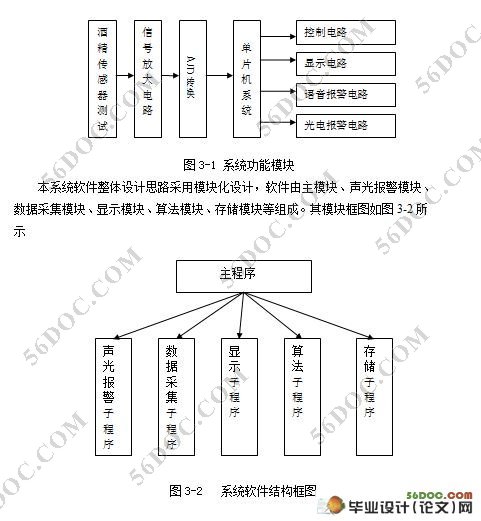

3.2.系统组成及功能    10
第四章 防酒后驾驶控制系统硬件电路设计    12
4.1酒精浓度测试电路    12
4.2信号放大电路    13
4.3 A/D转换电路    16
4.4单片机最小系统    21
4.4.1时钟电路    23
4.4.2复位电路    23
4.5  显示电路    24
4.6报警电路    27
4.6.1光电报警    27
4.6.2声音报警    28
4.7汽车制动控制电路    29
4.8 系统总电路设计    31
第五章    防酒后驾驶控制系统软件设计    32
5.1软件整体设计思路    32
5.2 主程序模块的设计    32
5.2.1显示子程序    34
5.2.2 控制子程序    35
5.3 数据采集及处理模块    36
第六章  防酒后驾驶控制系统调试    39
6.1硬件调试    39
6.2酒精浓度测试电路调试    40
6.3信号放大电路    41
6.4 A/D转换电路的调试    41
6.5显示模块的调试    41
6.6汽车制动控制模块的调试    42
6.7 总体调试    42
第七章 总结    43
7.1完善功能    43
7.2心得体会    43
致谢    44
参考文献    45
附录A    46
附录B    47
附录C    48
