DG150型造粒机设计(含CAD零件图装配图)

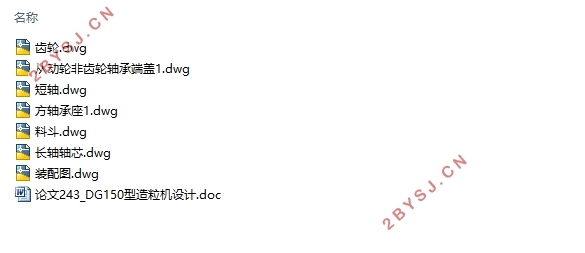

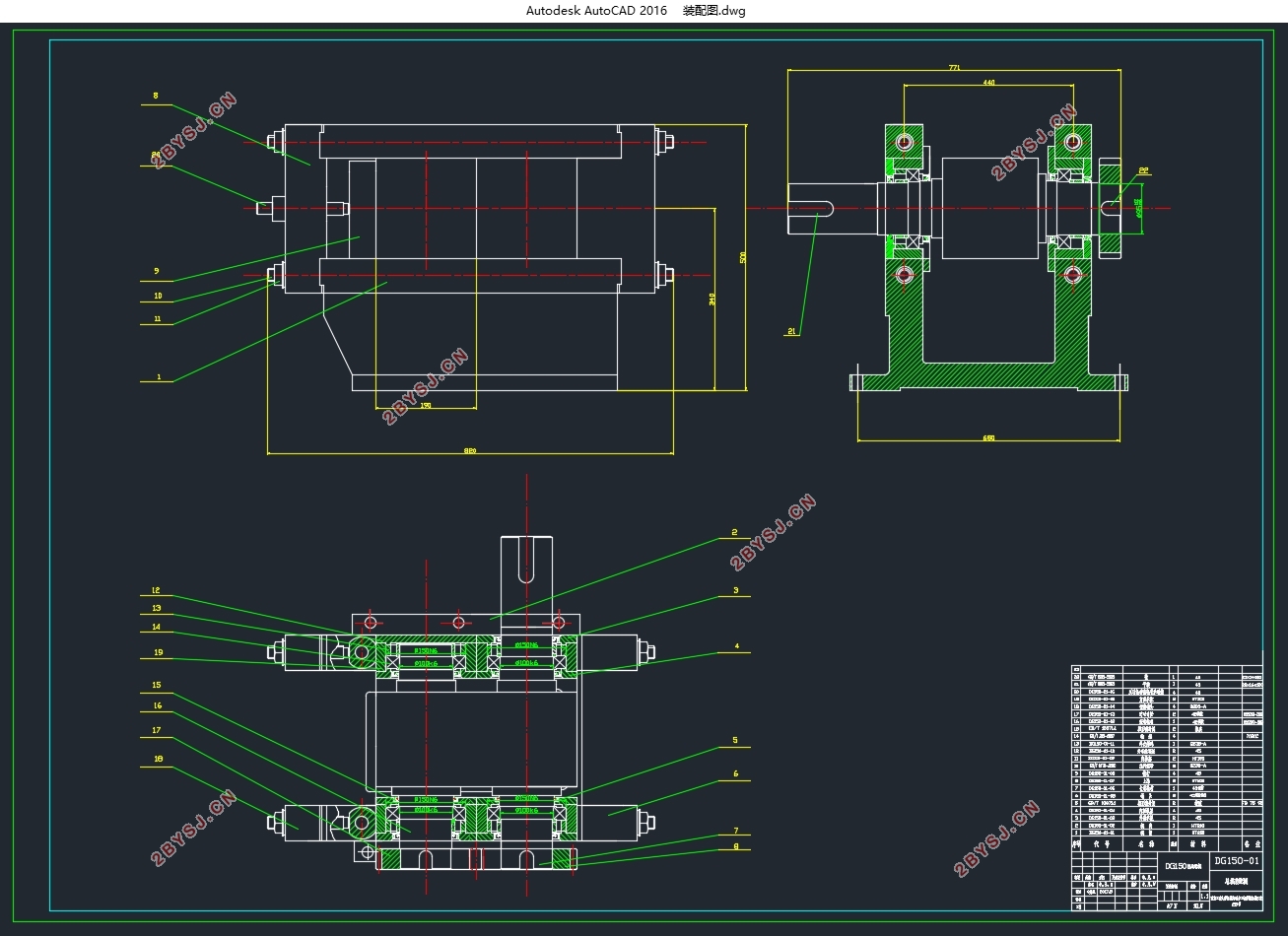

DG150型造粒机设计(含CAD零件图装配图)(论文说明书10000字,CAD图7张)
摘要
本文的主要内容是关于粉体造粒方法的分析和DG150型造粒机设计计算过程的说明。
首先,第一部分从造粒的目的和意义入手介绍了粉体颗粒的粒径、形状、群堆积性等各种性质;第二部分分别讲述我国目前所使用的粉体造粒的各种方法;最后,第三部分是对本次设计的DG150型造粒机设计计算过程的详细说明。
此次设计的DG50对辊造粒机适用干燥粉状物料造粒,它是干法造粒的一种。对辊造粒机是由一对半径相同、转速相同、转向向相反的辊轮组成。物料被匀速、均匀的喂入轧辊中,辊轮不间断的旋转，随后被轧辊挤压压实,被辊压的物料由于间距减小范德华力增大而紧紧结合在一起,再根据轧辊上孔穴的尺寸形状形成满足要求的颗粒大小。要求该型号对辊造粒机的单机生产能力为300-350Kg/ h,24小时连续不断生产,并保证不发生闷机、堵料故障。
设计方法是查阅大量有关硝酸钾物料性能的资料,实验得到两个轧辊的直径和宽度,然后根据两轧辊的直径宽度求得电动机功率等参数,从而进一步选择适合的传动结构:三相异步电动、C型V带、弹性柱销联轴器、减速器等等。最后校核选取的标准件的强度、刚度等,确定是否满足传动要求。
关键词:造粒  粉体物料  对辊造粒机  干法造粒

DG150 pelleter design
Abstract
  The main content of this paper is about the analysis of powder granulation method and DG150 granulator design and calculation process description.
  First, the first part of the granulation from the purpose and meaning of the introduction of the particle size of particles, shape, group accumulation and other properties; the second part of the current use of the powder granulation methods used in China; Finally, the third part is the design of the DG150-type granulator design and calculation process of a detailed description.
  The design of the DG50 on the roll granulator for dry powder material granulation, it is a dry granulation. The working principle is through the hopper feed, the powder material into the two rolls between the two at the same speed reverse rotation of the roller to compaction of the material, the rolling material due to the reduction of van der Waals force increased Tightly combined together, and then according to the size of the hole on the roll to form the size of the required particles to meet the requirements. The granulator requires its production capacity of 300-350Kg / h, 24 hours of continuous production, and to ensure that no stuffy machine, blocking material failure.
  The design method is to obtain the diameter and width of the two rolls by checking the performance parameters of the material, and then calculate a series of structural parameters by design to further select the appropriate transmission structure: motor, V-belt, coupling, reducer, etc. The And finally check whether these standard parts meet the drive requirements.
Key words: granulation；powder material ；roll granulation ； dry granulation
DG150型造粒机设计计算
DG150型造粒机的设计需要实现的目的:产量要求300-350kg/h; 物料的容积密度rv是0.98t/m3;颗粒粒径大小为8mm;产品抗压强度大于20N。要求在生产过程中不发生闷机,物料堵塞现象;选取的轧辊材料具有较高的耐磨性。
