电水壶的改进与创新(含CAD零件图装配图)

以下是资料介绍,如需要完整的请充值下载. 本资料已审核过,确保内容和网页里介绍一致.
无需注册登录,支付后按照提示操作即可获取该资料.
资料介绍:

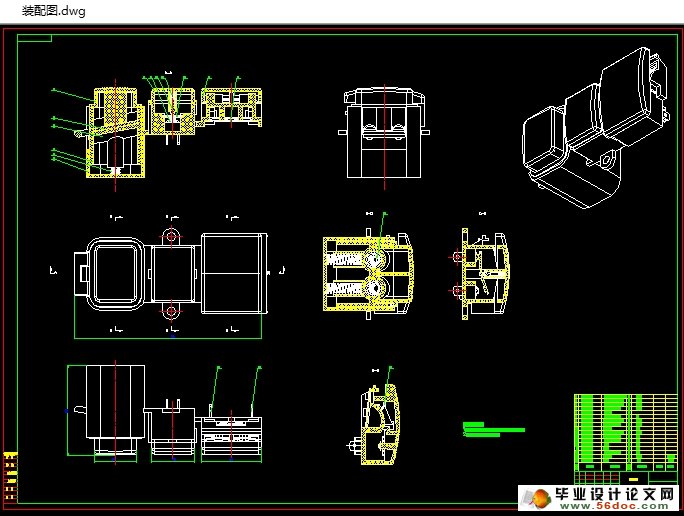

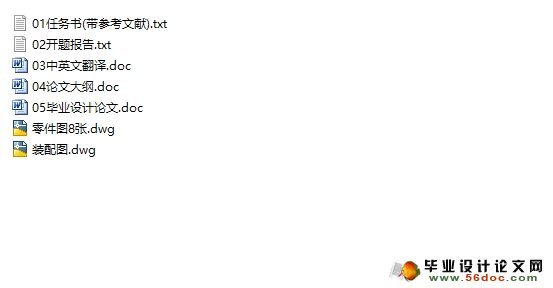

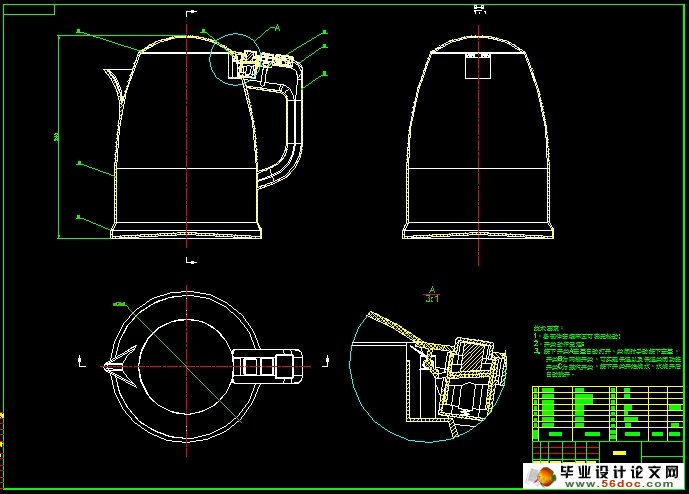

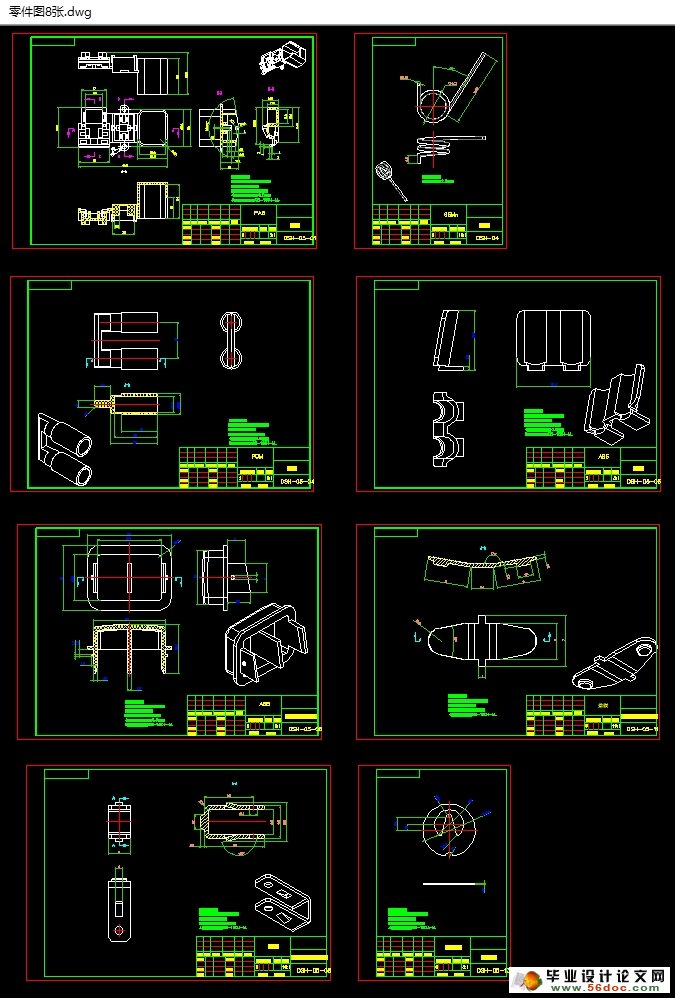

电水壶的改进与创新(含CAD零件图装配图)(任务书,开题报告,外文翻译,论文说明书10000字,CAD图纸10张)
摘 要
电水壶过滤强,功能全,人性化,智能化等特点深受消费者的青睐,但电水壶本身存在问题需要解决。针对电水壶的缺陷,基于传统电水壶与现代电水壶的优劣势对比,对电水壶机构的不合理性进行改进与创新。
1.    变更传统电水壶材料的单一性,根据设计要求对各个部位材料进行设计。电水壶大机构可以彩用不锈钢,壶把手可以采用陶瓷进行装饰,由于底盘采用自动收纳装置,电原线自动回位时有一定的弹力,为了防止电水壶底盘转动,上下两个底盘应该采用陶瓷材料,增加底盘重量。
2.    创新提出新的收纳方式,可伸缩式电源线,实现收线自动化既减少人工收线所需要的时间,又保护了电源线,还又有效避免暴露在外的电源线绊倒人。传统电水壶电源线长度为80cm过短,新型电源线收纳结构消费者可以根据自己的需要拉伸网线的长度,不在局限于电水壶必须在电源开关旁边。
3.    解决电水壶传统开盖,需要一只手提壶一只手开壶盖,传统壶盖太大在烧水时蒸汽容易烫伤人,采取扭簧滑块连接开关结构实现开关自动打开。
4.    其次在开关的设计上,开关集成化,创新的在壶把首上设计来3个开关。将人们日常生活着中最基本的烧水需求保留删减复杂的开关设计,整合其他电水壶的优点,新型电水壶设计简单大方,实用与多功能相结合,操作简单明了,方便用户使用。
与传统电水壶相比,新型壶盖大小适中,即方便壶盖打开又防止水壶壶盖上的水珠烫伤消费者。新的开关构造与传统电水壶开关分散不实用相比,即美观又实用。此外还增加了自动收纳电源线装置,既可以自动调节电源线长度又可以节省时间与人力。
关键词:电水壶 ;人性化 ;创新

Improvement and innovation of electric kettle
Abstract
 Electric kettle filter strong, full-featured, humane, intelligent and so on are widely favored by consumers, but the electric kettle itself is a problem to be solved. Based on the advantages and disadvantages of the traditional kettle and the modern kettle, the improvement and innovation of the electric kettle mechanism is not reasonable.
a.    Change the traditional electric kettle materials of a single, according to the design requirements of the various parts of the material design. Electric kettle large institutions can be made of stainless steel, the side of the kettle handle can be used for decorative ceramics, due to the chassis using automatic storage device and electric line automatic back has a certain degree of elasticity, in order to prevent electric kettle chassis rotation, two chassis should be made of ceramic material, increase the weight of the chassis.
b.    Innovation to put forward a new storage mode, retractable power line, reduce the time required for manual collection, and the protection of power lines, but also effectively avoid the power line tripping, to achieve the line automation. Traditional electric kettle power line length is too short for 80cm, the new power line storage structure consumers can according to their own need to stretch the length of the cable, not limited to the electric kettle must be in the power switch.
c.    To solve electric kettle traditional open cover aspects and need a portable pot of a hand to open the cover, lid is too large in boiling water steam easy to scald people, automatic elastic device for opening the lid of the kettle too large automatic in boiling water bomb open water droplets can easily burn people. Take reasonable structure to achieve automatic switch.
d.    Secondly in the design of the switch, the switch is integrated, innovative in the pot to design the first 3 switches. The people living in the most basic boil water demand remain cut complex switch design, integrating the advantages of other electric kettle, so the design is simple and generous, practical and multifunctional combined appearance and simple, and the operation is simple, is convenient for users to use.
    Pot cover size is moderate compared with the new electric kettle and traditional electric kettle, namely convenient kettle cover is opened and prevent the kettle cover drops scald consumer. The new switch structure and the traditional electric kettle switch dispersion is not practical, the concentration is beautiful and practical. The new electric kettle also increases the automatic storage power line device, saves time and manpower.

Keywords: Electric kettle humanized;Humanization ;Innovate


电水壶的改进与创新(含CAD零件图装配图)
电水壶的改进与创新(含CAD零件图装配图)
电水壶的改进与创新(含CAD零件图装配图)
电水壶的改进与创新(含CAD零件图装配图)


目  录
摘 要    I
Abstract    II
第1章 绪论    1
1.1电水壶市场的调研与考察    1
1.2常用电水壶优缺点的比较与分析    3
1.3国内外研究动态    8
1.4论文主要研究内容    8
第2章 电水壶底盘线圈收纳创新    10
2.1新型电水壶收纳装置设计思路    10
2.2收纳电源线结构分析    11
2.3新型电水壶收纳对比传统收纳的优点    12
第3章 开关机构的改进    13
3.1开关结构设计思路    13
3.2电水壶开关结构分析    16
3.3新型开关对比传统开关的优点    18
第4章 基于CREO,CAD模型设计    19
4.1 CREO结构图    19
4.2 CAD装配图    22
4.3 CAD零件图    24
结论与展望    32
参考文献    33
致  谢    34
